Automatic Abrasive Belt Polishing Machine for External Surface Treatment of Stainless Steel Tube

TUBE OUTSIDE POLISHING MACHINE
stainless steel tube polishing machine
stainless pipe polisher manufacturer
pipe tube polisher manufacturer
TUBE OUTSIDE POLISHING MACHINE
stainless steel tube polishing machine
stainless pipe polisher manufacturer
pipe tube polisher manufacturer

Description

INQUIRE

How to polish steel tube inner and outer surface with xinyida stainless steel tube polishing machine? We provide all kinds of automatic polishing machine for steel tank shell,dish head,vessel head,steel pipe surface grinding and polishing.

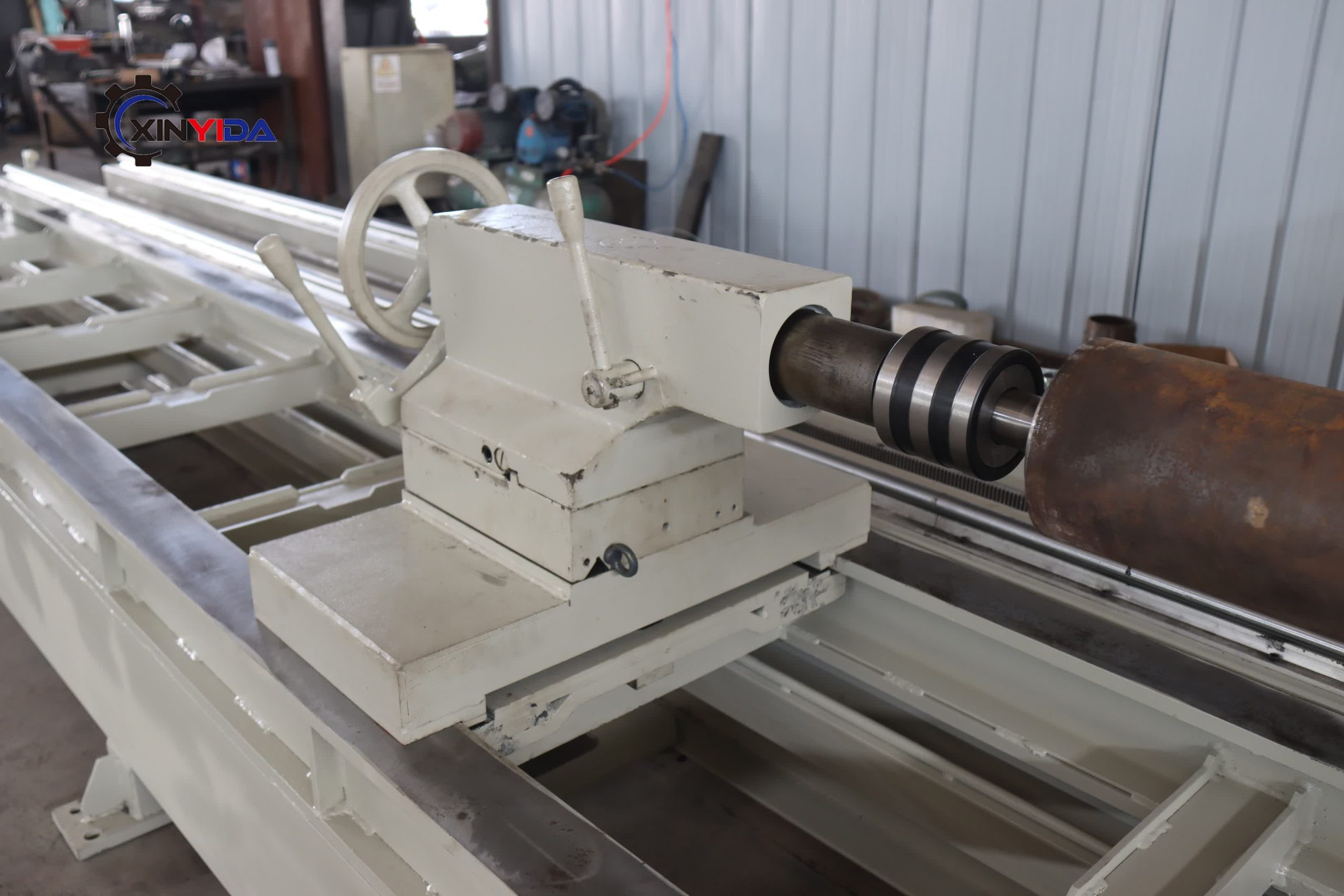

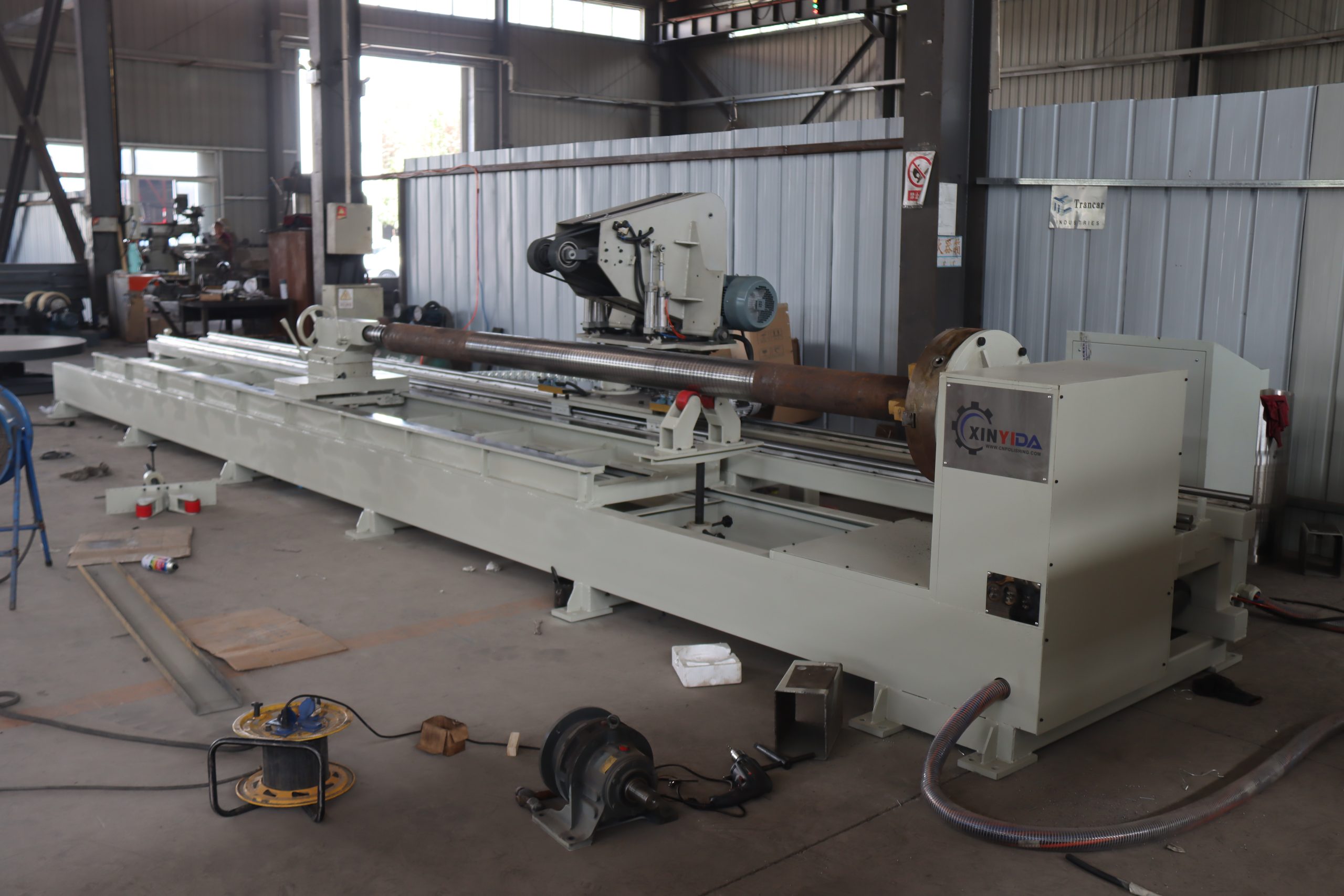

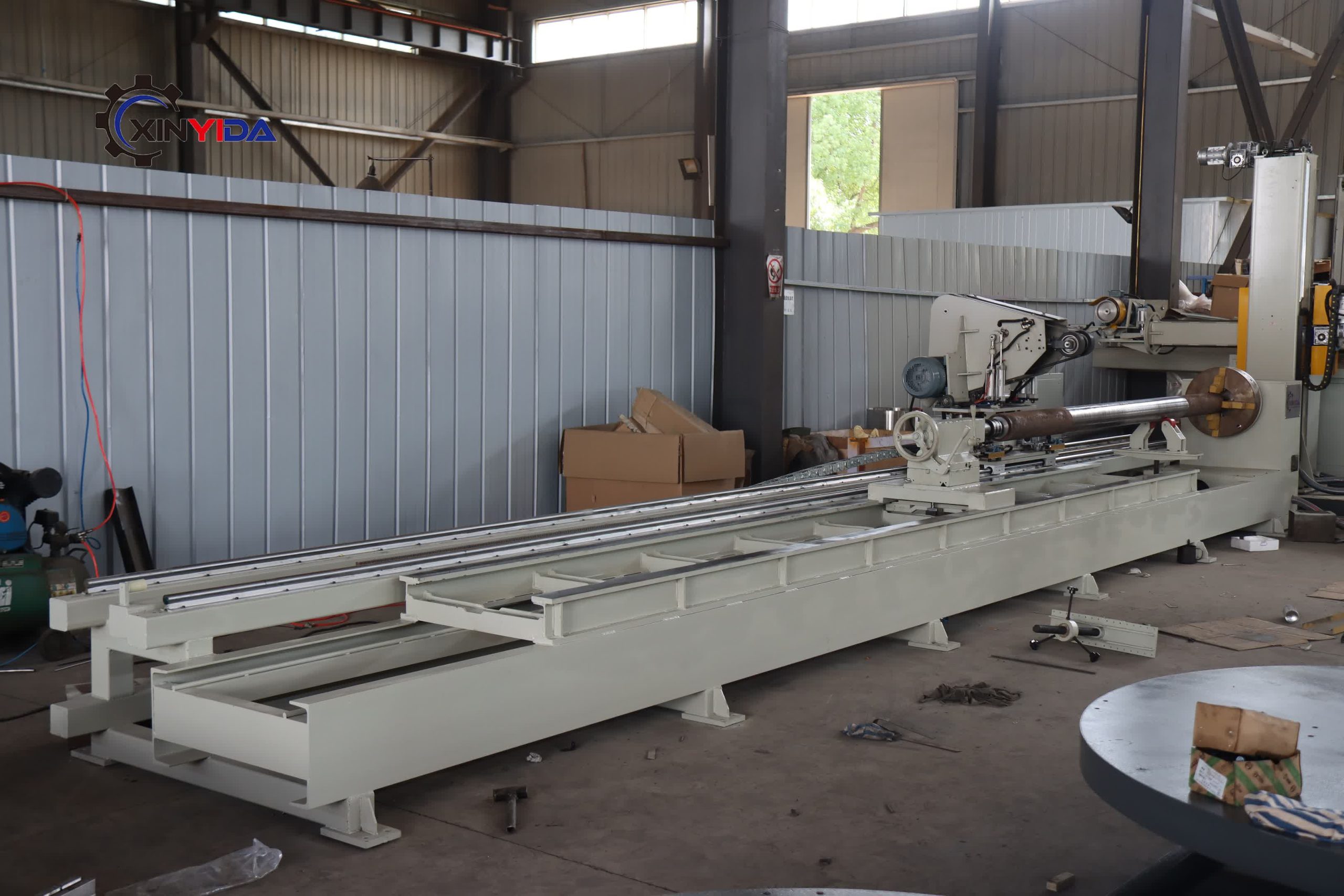

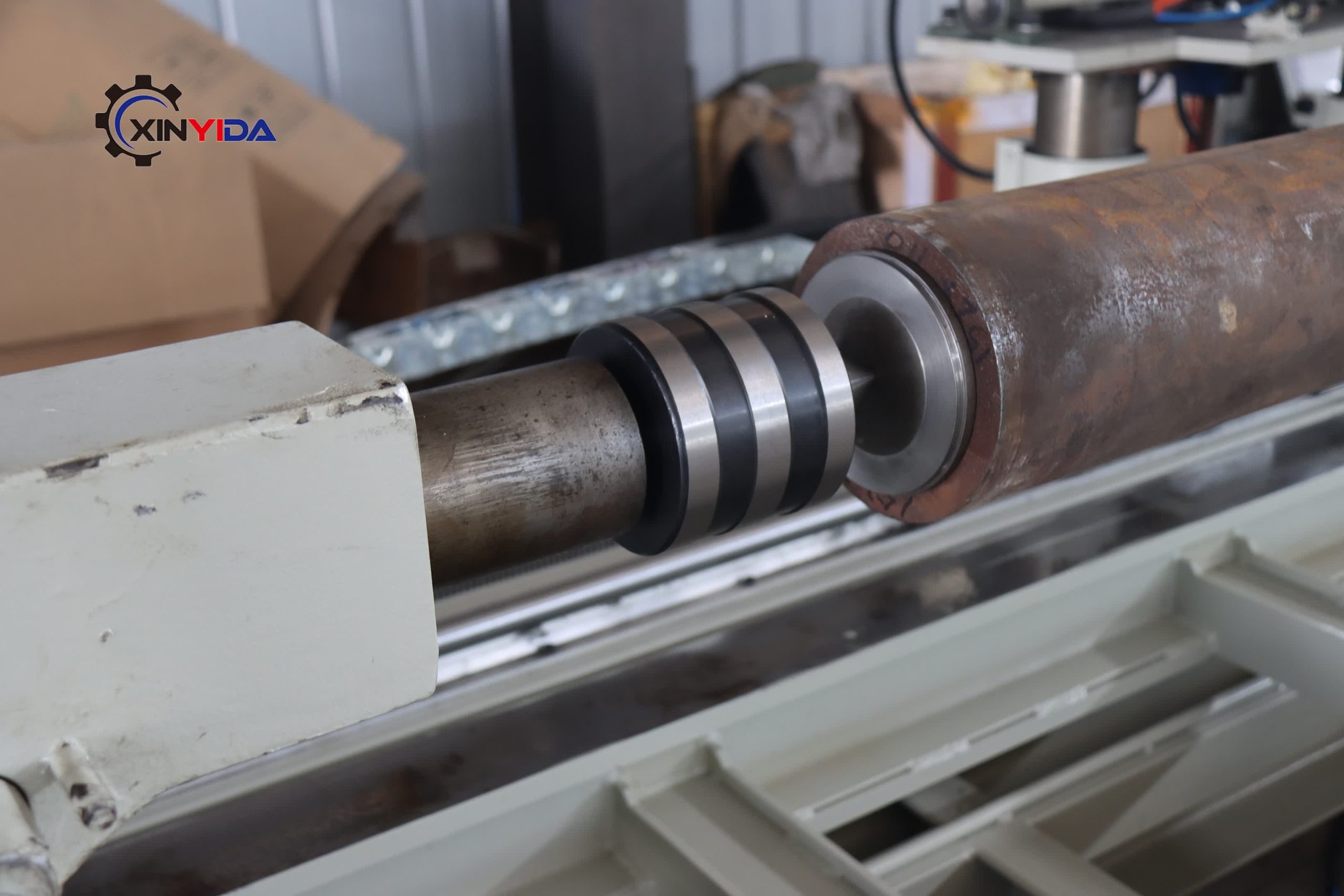

Grinding head frequency conversion main motor 7.5kw, reducer 4kw, support frame 3, grinding head travel maximum stroke 6000mm, support length 8m, U-turn can be polished in a 12m length round tube, with round tube chuck to adjust the size and lock, Clamping grinding wheel diameter 100×50mm.

We are a polishing machine manufacturer from China, I’d like to recommend our machine to you. Our main products are: dished end, tank polishing machine, CNC polishing machine, LNG passing polishing machine, PLC controlled flat polishing machine, round tube polishing machine and etc.

Technical Specification

Machine dimension L*W*H(in: mm): 6500*1200*1200
Machine weight 2500KGS
Input power 8KW
Control system PLC
Grinding wheel specifaction φ100*50mm
Expendable items Abrasive Belt, Hemp Wheel, Cloth Wheel, Thousand Impeller, and etc.
Workpiece material Stainless Steel & Carbon Steel
Machining accuracy surface roughness Ra0.6μm
Producing efficiency 6m2/h

Product Description

Product Features:

  1. High efficiency
  2. Expendable items Easily Exchange
  3. Professionally designed
  4. 6m travel-long of grinding head
  5. Easily Operating
  6. Optional Dusty Collector reducing dusty pollution
